CAD Audio VHF Wireless Dual Bodypack Microphone System - H Frequency Band

CAD Audio VHF Wireless Dual Bodypack Microphone System - H Frequency Band

Regular price $199.99 CAD
Regular price $199.99 CAD Sale price $199.99 CAD
Sale Sold out
BXLVBBH Dual Channel Wireless Details:

• Two discrete channels of wireless packaged in one receiver chassis.
• Each channel has RF and AF indicator lights that indicate the presence of
connectivity and audio source.
• VHF Frequency Operation for increased operating range
• Advanced dipole antenna technology for increased operating range.
• Three output options on the receiver for maximum performance and
flexibility of use.
- Professional balanced XLR discrete
- Professional balanced XLR mixed output
- Professional 1/4 inch output for easy output to a guitar amp or mixer
equipped with 1/4 inch input connections.
• Handheld transmitter outfitted with on/off and mute function for flexibility
of use.
• Battery life of >10hrs.
• Handheld transmitter features battery life indicator.
• All Bodypack systems ship with WXGTR guitar cable and WXHW
condenser headworn mic included in the system.

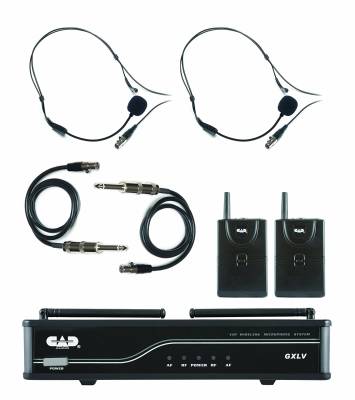

VHF Dual Bodypack wireless system includes:
[2] WXHW
[2] WXLAV

Specs:

RXGXLV Receiver
Frequency Band: VHF
Frequency Response: 50 Hz 18 KHz
Dynamic Range: > 100 dB
Sensitivity: -105 dB
Output Connectors: (2) XLR Balanced, 1 TRS 1/4"

TXGXLBV Body Pack Transmitter
Transmit Power: 10 mW
Power Requirements: 9V battery
Battery Life: > 10 hours (alkaline)
Connector: Accepts TA4F-type

TXGXLHV Handheld Transmitter
Operating Principal: Dynamic Unidirectional Capsule
Sensitivity: -26 dBV (50mv) @ 1Pa
Transmit Power: 10 mW
Power Requirements: 9V battery
Battery Life: > 10 hours (alkaline)
